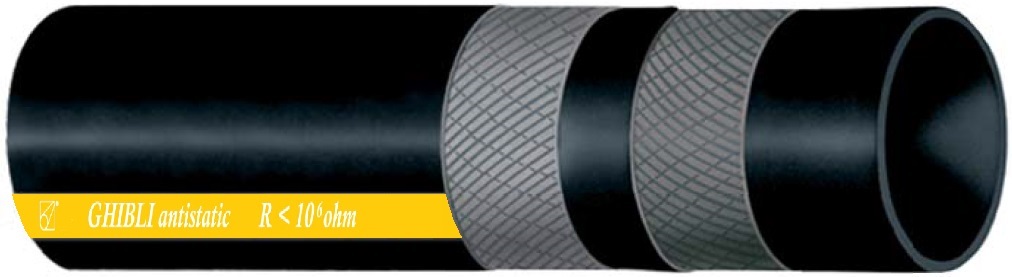

Type D
IBK – Sandblasting Hose type Ghibli
Description
Description
- Delivery hose suitable for transport abrasive products
- Structure suitable for the application in blasting systems
Tube
- NR/BR, black, antistatic (R < 10^6 Ω), smooth, resistant to abrasion and weather
Reinforcement
- Plies of synthetic textile
Cover
- SBR/NR, black, antistatic (R < 10^6 Ω), smooth, cloth finish, resistant to abrasion, weather and ageing
Temperature resistance media
- From – 30°C up to + 70°C
- Peaks up to + 80°C (depending on media)
Safety Factor
- > 4-times working pressure
Technical Data
Size Tolerances
Internal Diameter: ISO 1307 / Wall Thickness: DIN 7715 T4 S2 / Length: ISO 1307
| Internal Diameter (mm) | Wall Thickness (mm) | Bending Radius | Working Pressure 20°C (bar) | Vacuum | Theoretical Weight (kg / m) | Length max. (m) |
|---|---|---|---|---|---|---|
| 13 | 6.0 | 65 | 12 | - | 0.41 | 40 |
| 16 | 7.0 | 80 | 12 | - | 0.59 | 40 |
| 19 | 7.0 | 100 | 12 | - | 0.69 | 40 |
| 25 | 7.5 | 125 | 12 | - | 0.86 | 40 |
| 32 | 8.0 | 160 | 12 | - | 1.15 | 40 |
| 40 | 10.0 | 240 | 12 | - | 1.79 | 40 |
| 50 | 11.0 | 300 | 12 | - | 2.48 | 40 |
| 65 | 9.5 | 390 | 12 | - | 2.60 | 40 |
| 75 | 12.5 | 450 | 12 | - | 3.95 | 40 |
| 80 | 12.5 | 480 | 12 | - | 4.17 | 40 |
| 100 | 12.5 | 600 | 12 | - | 5.03 | 40 |
| 125 | 12.5 | 750 | 12 | 6.26 | 40 | |
| 152 | 14.0 | 900 | 12 | 8.44 | 40 |
→ Other sizes and different versions are available on request. Pictures might be different to the original
Standard Connections
Our Rubber hoses are manufactured according to the customers’ request.
Especially the connections play an important role.
Further information for the different types of connections you can get here

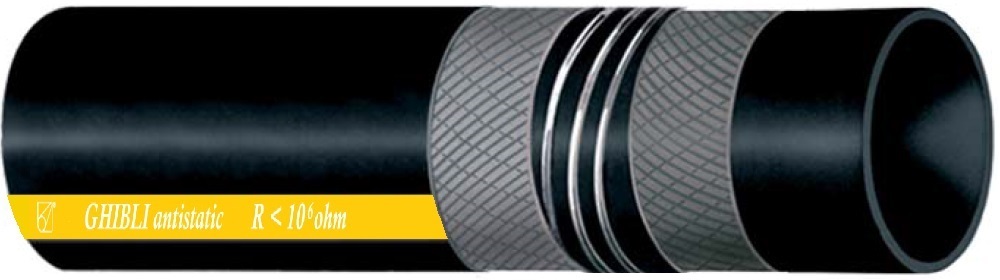

Type SD
IBK – Sandblasting Hose type Ghibli
Description
Description
- Pneumatic and hydraulik hose for suction and delivery of abrasive materials, corrosive liquids and powdery substances
Tube
- NR/BR, black color antistatic (R < 10^6 Ω), smooth, resistant to abrasion and weather
Reinforcement
- Plies of synthetic textile
- Embedded steel helix wire
Cover
- SBR/NR, black, antistatic (R < 10^6 Ω), smooth, cloth finish, resistant to abrasion, weather and ageing
Temperature resistance media
- From – 30°C up to + 70°C
- Peaks up to + 80°C (depending on media)
Safety Factor
- > 3-times working pressure
Technical Data
Size Tolerances
Internal Diameter: ISO 1307 / Wall Thickness: DIN 7715 T4 S2 / Length: ISO 1307
| Internal Diameter (mm) | Wall Thickness (mm) | Bending Radius | Working Pressure 20°C (bar) | Vacuum | Theoretical Weight (kg / m) | Length max. (m) |
|---|---|---|---|---|---|---|
| 40 | 7.0 | 200 | 12 | - 0.9 | 2.80 | 40 |
| 50 | 7.0 | 250 | 12 | - 0.9 | 3.30 | 40 |
| 65 | 7.0 | 300 | 12 | - 0.9 | 4.20 | 40 |
| 80 | 7.0 | 400 | 12 | - 0.9 | 4.95 | 40 |
| 100 | 7.0 | 500 | 12 | - 0.9 | 6.60 | 40 |
| 125 | 7.0 | 650 | 12 | - 0.9 | 8.60 | 40 |
| 150 | 7.0 | 900 | 12 | - 0.9 | 10.10 | 40 |
| 200 | 5.5 | 1400 | 12 | - 0.9 | 14.80 | 12 |
| 254 | 5.5 | 2000 | 12 | - 0.9 | 19.60 | 12 |
| 305 | 5.5 | 2400 | 12 | - 0.9 | 26.80 | 12 |
→ Other sizes and different versions are available on request. Pictures might be different to the original
Standard Connections
Our Rubber hoses are manufactured according to the customers’ request.
Especially the connections play an important role.
Further information for the different types of connections you can get here
