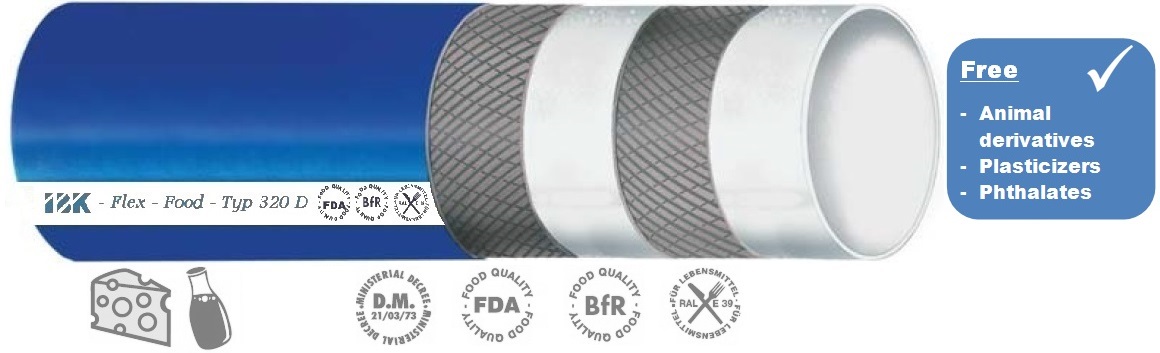

Type D
IBK – Multi Food Hose Flex Food 320
[tabs style=”button” position=”top-left”] [tab_title]Description[/tab_title] [tab_content]
Description
- Delivery hose for conveying milk, by-products and generally liquid fatty foodstuffs
- Normally used in dairies, edible oil mills and food processing industries
- Totally free from plasticizers and animal derivatives, reduces the risk of bacterial growth and contamination of the media conveyed
- The high-strength hose structure makes it ideal for unloading operations of milk and milk products and generally for heavyduty applications
- The composition of its cover provides a good resistance to ageing and withstands accidental contact with animal and vegetable fats
- Hose in accordance with EC 1935/2004 and 2023/2006/EC (GMP) and EC 1907/2006 (REACH)
Tube
- NBR, light color, food quality, odorless and tasteless, mirror-smooth, resistant to oils and fats
- Compliance: FDA standards, BfR requirements, D.M 21/03/73 and RAL registration for food quality
Reinforcement
- Plies of synthetic textile
Cover
- CR, blue, smooth, cloth finish, self-extinguishing, resistant to abrasion, ozone and weather
Temperature resistance media
- From – 20°C up to + 90°C
- Peaks up to + 130°C for maximum 30 minutes
Safety Factor
- > 3-times working pressure
[tabs style=”button” position=”top-left”] [tab_title]Technical Data[/tab_title] [tab_content]
Size Tolerances
Internal Diameter: ISO 1307 / Wall Thickness: DIN 7715 T4 S2 / Length: ISO 1307
| Internal Diameter (mm) | Wall Thickness (mm) | Bending Radius | Working Pressure 20°C (bar) | Vacuum | Theoretical Weight (kg / m) | Length max. (m) |
|---|---|---|---|---|---|---|
| 13 | 5.0 | 80 | 10 | -0.80 | 0.35 | 40 |
| 19 | 5.0 | 120 | 10 | -0.65 | 0.47 | 40 |
| 25 | 6.0 | 150 | 10 | -0.65 | 0.77 | 40 |
| 32 | 8.0 | 200 | 10 | -0.80 | 1.42 | 40 |
| 38 | 10.0 | 240 | 10 | -0.80 | 2.40 | 40 |
| 50 | 10.0 | 300 | 10 | -0.65 | 2.79 | 40 |
| 63 | 12.0 | 460 | 10 | -0.50 | 4.16 | 40 |
| 75 | 15.0 | 560 | 10 | -0.50 | 6.18 | 40 |
| 100 | 16.0 | 700 | 10 | -0.50 | 8.16 | 40 |
→ Other sizes and different versions are available on request. Pictures might be different to the original
[tabs style=”button” position=”top-left”] [tab_title]Standard Connections[/tab_title] [tab_content]
Our Rubber hoses are manufactured according to the customers’ request.
Especially the connections play an important role.
Further information for the different types of connections you can get here

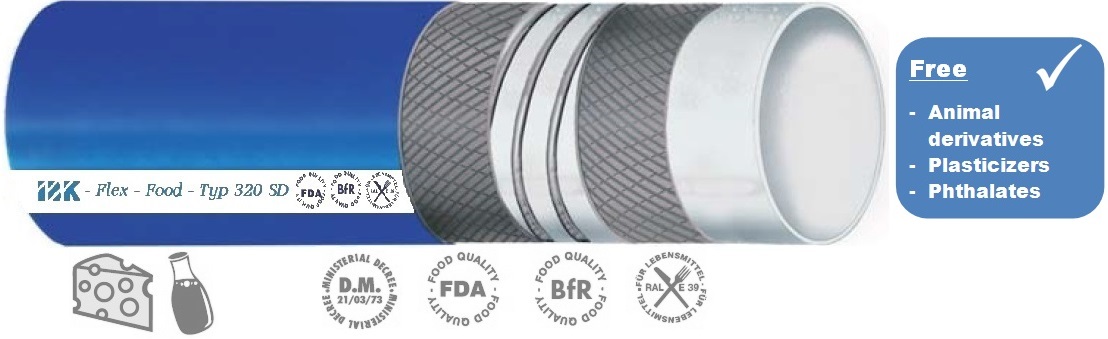

Type SD
IBK – Multi Food Hose Flex Food 320
[tabs style=”button” position=”top-left”] [tab_title]Description[/tab_title] [tab_content]
Description
- Delivery hose for conveying milk, by-products and generally liquid fatty foodstuffs
- Normally used in dairies, edible oil mills and food processing industries
- Totally free from plasticizers and animal derivatives, reduces the risk of bacterial growth and contamination of the media conveyed
- The high-strength hose structure makes it ideal for unloading operations of milk and milk products and generally for heavyduty applications
- The composition of its cover provides a good resistance to ageing and withstands accidental contact with animal and vegetable fats
- Hose in accordance with EC 1935/2004 and 2023/2006/EC (GMP) and EC 1907/2006 (REACH)
Tube
- NBR, light color, food quality, odorless and tasteless, mirror-smooth, resistant to oils and fats
- Compliance: FDA standards, BfR requirements, D.M 21/03/73 and RAL registration for food quality
Reinforcement
- Plies of synthetic textile
Cover
- CR, blue, smooth, cloth finish, self-extinguishing, resistant to abrasion, ozone and weather
Temperature resistance media
- From – 20°C up to + 90°C
- Peaks up to + 130°C for maximum 30 minutes
Safety Factor
- > 3-times working pressure
[tabs style=”button” position=”top-left”] [tab_title]Technical Data[/tab_title] [tab_content]
Size Tolerances
Internal Diameter: ISO 1307 / Wall Thickness: DIN 7715 T4 S2 / Length: ISO 1307
| Internal Diameter (mm) | Wall Thickness (mm) | Bending Radius | Working Pressure 20°C (bar) | Vacuum | Theoretical Weight (kg / m) | Length max. (m) |
|---|---|---|---|---|---|---|
| 13 | 5.0 | - | 10 | -0.90 | - | 40 |
| 19 | 6.0 | 80 | 10 | -0.90 | 0.69 | 40 |
| 25 | 6.0 | 120 | 10 | -0.90 | 0.85 | 40 |
| 32 | 6.0 | 150 | 10 | -0.90 | 1.04 | 40 |
| 38 | 7.0 | 200 | 10 | -0.90 | 1.62 | 40 |
| 50 | 7.0 | 250 | 10 | -0.90 | 1.95 | 40 |
| 63 | 8.0 | 360 | 10 | -0.90 | 2.93 | 40 |
| 75 | 9.0 | 480 | 10 | -0.90 | 3.95 | 40 |
| 100 | 9.0 | 600 | 10 | -0.90 | 5.20 | 40 |
→ Other sizes and different versions are available on request. Pictures might be different to the original
[tabs style=”button” position=”top-left”] [tab_title]Standard Connections[/tab_title] [tab_content]
Our Rubber hoses are manufactured according to the customers’ request.
Especially the connections play an important role.
Further information for the different types of connections you can get here
