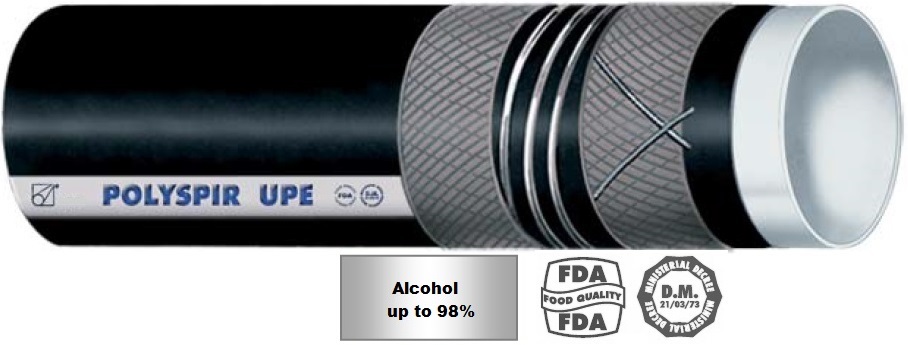

IBK – Universal Hose Type Polyspir UPE
Description
- Versatile hose for suction and delivery of a variety of chemical, alcoholic and foodstuff products
- Normally installed on tank trucks, discharge platforms, mobile equipment or recommended for in-plant applications in laboratories, food and chemical industries
- The inner liner of the hose (UPE-BN) is suitable for conveying alcohol with a concentration up to 98%
- Hose in accordance with EC 1935/2004 and 2023/2006/EC (GMP) and EC 1907/2006 (REACH)
Tube
- UPE (Ultra High Molecular Weight Polyethylene), white, mirror-smooth
- Compliance: FDA standards and D.M. 21/09/73
Reinforcement
- Plies of high strength synthetic textile
- Built-In copper wires
- Embedded steel helix wire
Cover
- EPDM, black, smooth, cloth finish, antistatic (R < 10^6 Ω), resistant to abrasion, ozone, weather and high temperatures
Temperature resistance media
- From – 35°C up to + 100°C
- Resistant to steam up to + 130°C for maximum 30 minutes
Safety Factor
- > 4-times working pressure
[tabs style=”button” position=”top-left”] [tab_title]Technical Data[/tab_title] [tab_content]
Size Tolerancens
Internal Diameter: ISO 1307 / Wall Thickness: DIN 7715 T4 S2 / Length: ISO 1307
| Internal-Ø (mm) | Wall Thickness (mm) | Bending Radius | Working Pressure at 20°C (bar) | Vacuum | Theoretical Weight (kg / m) | Length max. (m) |
|---|---|---|---|---|---|---|
| 13 | 5.5 | 80 | 10 | -0.9 | 0.45 | 40 |
| 19 | 6.0 | 115 | 10 | -0.9 | 0.65 | 40 |
| 25 | 6.0 | 150 | 10 | -0.9 | 0.82 | 40 |
| 32 | 6.0 | 190 | 10 | -0.9 | 0.82 | 40 |
| 38 | 6.5 | 230 | 10 | -0.9 | 1.25 | 40 |
| 40 | 6.5 | 240 | 10 | -0.9 | 1.30 | 40 |
| 50 | 7.0 | 300 | 10 | -0.9 | 1.84 | 40 |
| 63.5 | 8.0 | 390 | 10 | -0.9 | 2.55 | 40 |
| 75 | 8.0 | 480 | 10 | -0.9 | 3.00 | 40 |
| 80 | 8.0 | 480 | 10 | -0.9 | 3.15 | 40 |
| 100 | 9.0 | 600 | 10 | -0.9 | 4.90 | 40 |
| 102 | 9.0 | 600 | 10 | -0.9 | 4.92 | 40 |
→ Other sizes and different versions are available on request. Pictures might be different to the original.
[tabs style=”button” position=”top-left”] [tab_title]Standard Connections[/tab_title] [tab_content]
Our Rubber hoses are manufactured according to the customers’ request.
Especially the connections play an important role.
Further information for the different types of connections you can get here
