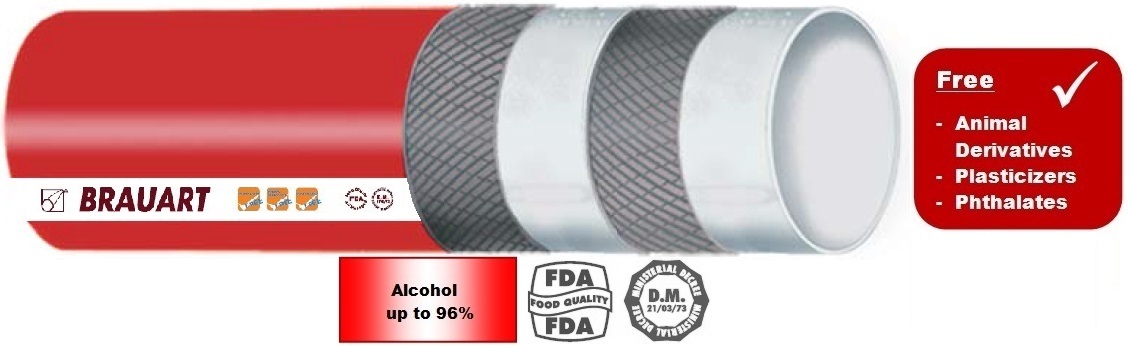

IBK – Beverage Hose (for Alcohol up to 96%) Type Brauart Plus
Description
- Food hose, specially designed to meet the demanding requirements of the beer industry
- Suitable for conveying raw, pasteurized and bio- beer, high-quality alcoholic (96% at 20 °C), non-alcoholic drinks, quality wine and fatty mediums
- Suction and delivery hose with a slight suction service
- Free from plasticizers and animal derivatives, reduces the risk of bacterial growth and contamination of the media conveyed
- The special structure, make the hose ideal for loading and unloading processes in breweries
- The composition of its cover provides a good resistance to ageing
- Hose in accordance with EC 1935/2004 and 2023/2006/EC (GMP) and EC 1907/2006 (REACH)
Tube
- UPE (Ultra High Molecular Weight Polyethylene), white, mirror-smooth, food quality, odorless and tasteless
- Compliance: FDA standards and D.M. 21/09/73
Reinforcement
- Plies of synthetic textile
Cover
- CR, red, smooth, cloth finish, self-extinguishing, resistant to abrasion, ozone and weather
Temperature resistance media
- From – 30°C up to + 90°C
- Sterilization up to + 130°C for maximum 30 minutes
Safety Factor
- > 3-times working pressure
[tabs style=”button” position=”top-left”] [tab_title]Technical Data[/tab_title] [tab_content]
Size Tolerancens
Internal Diameter: ISO 1307 / Wall Thickness: DIN 7715 T4 S2 / Length: ISO 1307
| Internal Diameter (mm) | Wall Thickness (mm) | Bending Radius | Working Pressure 20°C (bar) | Vacuum | Theoretical Weight (kg / m) | Length max. (m) |
|---|---|---|---|---|---|---|
| 25 | 6.0 | 150 | 16 | -0.8 | 0.74 | 40 |
| 32 | 8.0 | 200 | 16 | -0.8 | 1.38 | 40 |
| 40 | 10.0 | 250 | 16 | -0.8 | 2.10 | 40 |
| 50 | 11.0 | 350 | 16 | -0.8 | 2.95 | 40 |
| 65 | 12.0 | 450 | 16 | -0.7 | 4.00 | 40 |
| 75 | 15.0 | 500 | 16 | -0.6 | 5.70 | 40 |
| 80 | 15.0 | 650 | 16 | -0.6 | 5.90 | 40 |
| 100 | 15.0 | 750 | 16 | -0.6 | 6.95 | 40 |
→ Other sizes and different versions are available on request. Pictures might be different to the original.
[tabs style=”button” position=”top-left”] [tab_title]Standard Connections[/tab_title] [tab_content]
Our Rubber hoses are manufactured according to the customers’ request.
Especially the connections play an important role.
Further information for the different types of connections you can get here
