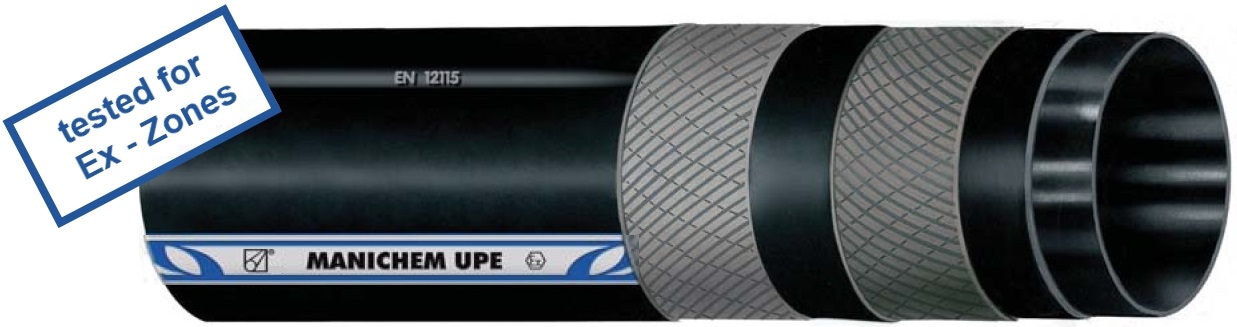

Type D
IBK – Multi Chemical Hose Manichem UPE
[tabs style=”button” position=”top-left”] [tab_title]Description[/tab_title] [tab_content]
Description
- Delivery hose for conveying a wide range of chemical aggressive products
- Meets the standards EN 12115:2011
- Engineered to ensure the dissipation of electrostatic currents not only superficially, but also through the hose wall
Tube
- UPE (Ultra High Molecular Weight Polyethylene), black, smooth, antistatic (R < 10^6 Ω)
Reinforcement
- Plies of high strength synthetic textile
- Built-in copper wires are available upon request
Cover
- EPDM, black, smooth, antistatic (R < 10^6 Ω), resistant to abrasion, ozone, weather and high temperatures, cloth finish
Temperature resistance media
- From – 35°C up to + 100°C
- Resistance to steam + 130°C for maximum 30 minutes
Electrical Properties
- Electrical resistance through the hose wall: R < 10^9 Ω
- Standard: Without copper wires: R < 10^6 Ω; Symbol: Ω / T; Alternative: With copper wires: R < 10^2 Ω; Symbol: M / T
Safety Factor
- > 4-times working pressure
[tabs style=”button” position=”top-left”] [tab_title]Technical Data[/tab_title] [tab_content]
Size Tolerances
Internal Diameter: EN 12115 / External Diameter: EN 12115 / Length: ISO 1307
| Internal Diameter (mm) | Wall Thickness (mm) | Bending Radius | Working Pressure 20°C (bar) | Vacuum | Theoretical Weight (kg / m) | Length max. (m) |
|---|---|---|---|---|---|---|
| 19 | 6.0 | 125 | 16 | -0.50 | 0.55 | 40 |
| 25 | 6.0 | 150 | 16 | -0.40 | 0.65 | 40 |
| 32 | 6.0 | 175 | 16 | -0.40 | 0.85 | 40 |
| 38 | 6.5 | 225 | 16 | -0.40 | 1.00 | 40 |
| 50 | 8.0 | 275 | 16 | -0.30 | 1.70 | 40 |
| 63.5 | 8.0 | 300 | 16 | - | 2.00 | 40 |
| 75 | 8.0 | 350* | 16 | - | 2.50 | 40 |
| 100 | 9.0 | 450* | 16 | - | 3.20 | 40 |
* The bending radius can be reached at a working pressure of > 1 bar
→ Other sizes and different versions are available on request. Pictures might be different to the original
[tabs style=”button” position=”top-left”] [tab_title]Standard Connections[/tab_title] [tab_content]
Our Rubber hoses are manufactured according to the customers’ request.
Especially the connections play an important role.
Further information for the different types of connections you can get here

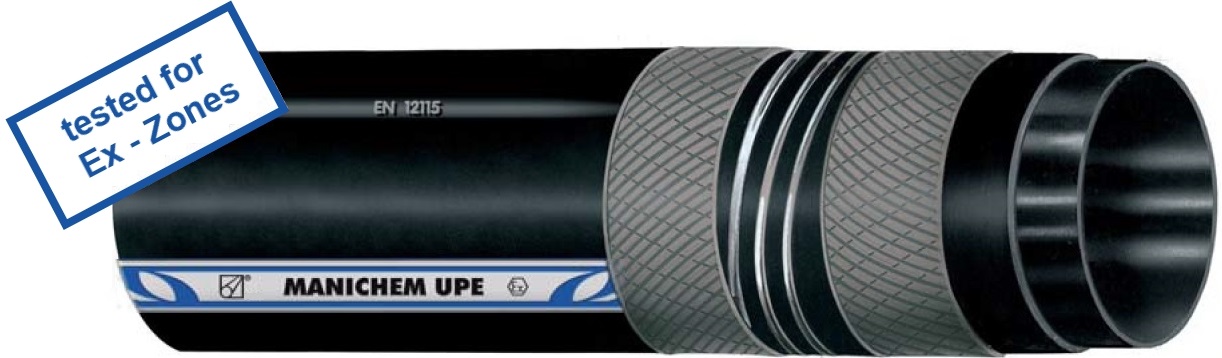

Type SD
IBK – Multi Chemical Hose Manichem UPE
[tabs style=”button” position=”top-left”] [tab_title]Description[/tab_title] [tab_content]
Description
- Suction and delivery hose for conveying a wide range of chemical aggressive products
- Meets the standards EN 12115:2011
- Engineered to ensure the dissipation of electrostatic currents not only superficially, but also through the hose wall
- For suction and discharge service
Tube
- UPE (Ultra High Molecular Weight Polyethylene), black, smooth, antistatic (R < 10^6 Ω)
Reinforcement
- Plies of high strength synthetic textile
- Built-In copper wires are available upon request
- Embedded steel helix wire
Cover
- EPDM, black, smooth, antistatic (R < 10^6 Ω), resistant to abrasion, ozone, weather and high temperatures, cloth finish
Temperature resistance media
- From – 35°C up to + 100°C
- Resistance to steam + 130°C for maximum 30 minutes
Electrical Properties
- Electrical resistance through the hose wall: R < 10^9 Ω
- Standard: Without copper wires: R < 10^6 Ω; Symbol: Ω / T; Alternative: With copper wires: R < 10^2 Ω; Symbol: M / T
Safety Factor
- > 4-times working pressure up to ID 75 mm
- > 3-times working pressure over ID 75 mm
[tabs style=”button” position=”top-left”] [tab_title]Technical Data[/tab_title] [tab_content]
Size Tolerances
Internal Diameter: EN 12115 / External Diameter: EN 12115 / Length: ISO 1307
| Internal Diameter (mm) | Wall Thickness (mm) | Bending Radius | Working Pressure 20°C (bar) | Vacuum | Theoretical Weight (kg / m) | Length max. (m) |
|---|---|---|---|---|---|---|
| 19 | 6.0 | 125 | 16 | -0.90 | 0.55 | 40 |
| 25 | 6.0 | 150 | 16 | -0.90 | 0.65 | 40 |
| 32 | 6.0 | 175 | 16 | -0.90 | 0.85 | 40 |
| 38 | 6.5 | 225 | 16 | -0.90 | 1.00 | 40 |
| 50 | 8.0 | 275 | 16 | -0.90 | 1.70 | 40 |
| 63.5 | 8.0 | 300 | 16 | -0.90 | 2.00 | 40 |
| 75 | 8.0 | 350 | 16 | -0.80 | 2.50 | 40 |
| 100 | 8.0 | 450 | 16 | -0.80 | 3.20 | 40 |
→ Other sizes and different versions are available on request. Pictures might be different to the original
[tabs style=”button” position=”top-left”] [tab_title]Standard Connections[/tab_title] [tab_content]
Our Rubber hoses are manufactured according to the customers’ request.
Especially the connections play an important role.
Further information for the different types of connections you can get here
