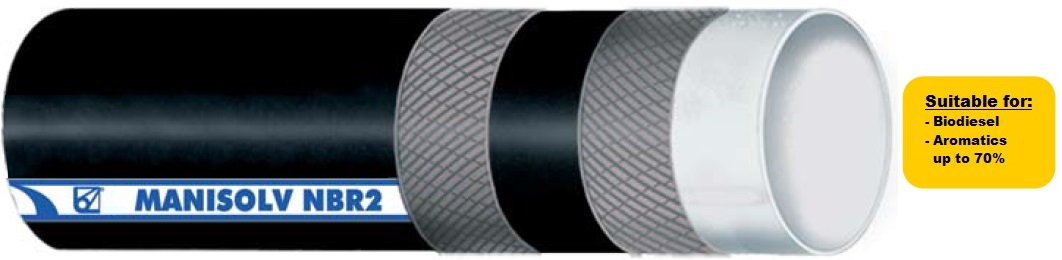

Type D
IBK – Solvent Hose Manisolv NBR II
[tabs style=”button” position=”top-left”] [tab_title]Description[/tab_title] [tab_content]
Description
- Delivery hose for conveying hydrocarbon solvents with an aromatic content up to 70%
- Suitable for transferring gasoline, diesel, biodiesel blends including B100 and fuels based on ethanol
- Meets the standards EN 12115:2011
Tube
- NBR2 rubber, white, smooth, resistant to gasoline, oils, fats, hydrocarbon and gas
Reinforcement
- Plies of high strength synthetic textile
- Built-in copper wires are available upon request
Cover
- NBR, black, smooth, antistatic (R < 10^6 Ω), resistant to abrasion, ozone, weather, gasoline, fatsand minerals oils, cloth finish
Temperature resistance media
- From – 20°C up to + 75°C
- Peaks up to + 90°C (depending on media)
Electrical Properties
- Standard: Without copper wires: R < 10^6 Ω; Symbol: Ω / T; Alternative: With copper wires: R < 10^2 Ω; Symbol: M / T
Safety Factor
- > 4-times working pressure
[tabs style=”button” position=”top-left”] [tab_title]Technical Data[/tab_title] [tab_content]
Size Tolerances
Internal Diameter: EN 12115 / External Diameter: EN 12115 / Length: ISO 1307
| Internal Diameter (mm) | Wall Thickness (mm) | Bending Radius | Working Pressure 20°C (bar) | Vacuum | Theoretical Weight (kg / m) | Length max. (m) |
|---|---|---|---|---|---|---|
| 13 | 5.0 | 90 | 16 | -0.50 | 0.42 | 40 |
| 19 | 6.0 | 125 | 16 | -0.50 | 0.66 | 40 |
| 25 | 6.0 | 150 | 16 | -0.40 | 0.82 | 40 |
| 32 | 6.0 | 175 | 16 | -0.40 | 1.00 | 40 |
| 38 | 6.5 | 225 | 16 | -0.40 | 1.20 | 40 |
| 50 | 8.0 | 275 | 16 | -0.30 | 1.95 | 40 |
| 51 | 8.0 | 275 | 16 | -0.30 | 2.00 | 40 |
| 63.5 | 8.0 | 300 | 16 | - | 2.30 | 40 |
| 75 | 8.0 | 350* | 16 | - | 2.70 | 40 |
| 76 | 8.0 | 350* | 16 | - | 2.75 | 40 |
| 100 | 8.0 | 450* | 16 | - | 3.50 | 40 |
| 102 | 8.0 | 450* | 16 | - | 3.55 | 40 |
* The bending radius can be reached at a working pressure of > 1 bar
→ Other sizes and different versions are available on request. Pictures might be different to the original
[tabs style=”button” position=”top-left”] [tab_title]Standard Connections[/tab_title] [tab_content]
Our Rubber hoses are manufactured according to the customers’ request.
Especially the connections play an important role.
Further information for the different types of connections you can get here

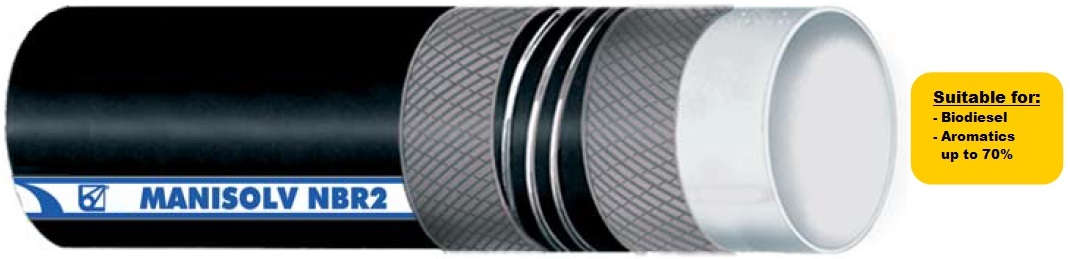

Type SD
IBK – Solvent Hose Manisolv NBR II
[tabs style=”button” position=”top-left”] [tab_title]Description[/tab_title] [tab_content]
Description
- Suction and delivery hose for conveying hydrocarbon solvents with an aromatic content up to 70%
- Suitable for transferring gasoline, diesel, biodiesel blends including B100 and fuels based on ethanol
- Meets the standards EN 12115:2011
Tube
- NBR2 rubber, white, smooth, resistant to gasoline, oils, fats, hydrocarbon and gas
Reinforcement
- Plies of high strength synthetic textile
- Embedded steel helix wire
- Built-in copper wires are available upon request
Cover
- NBR, black, smooth, antistatic (R < 10^6 Ω), resistant to abrasion, ozone, weather, gasoline, fatsand minerals oils, cloth finish
Temperature resistance media
- From – 20°C up to + 75°C
- Peaks up to + 90°C (depending on media)
Electrical Properties
- Standard: Without copper wires: R < 10^6 Ω; Symbol: Ω / T; Alternative: With copper wires: R < 10^2 Ω; Symbol: M / T
Safety Factor
- > 4-times working pressure up to ID 63.5 mm
- > 3-times working pressure over ID 63.5 mm
[tabs style=”button” position=”top-left”] [tab_title]Technical Data[/tab_title] [tab_content]
Size Tolerances
Internal Diameter: EN 12115 / External Diameter: EN 12115 / Length: ISO 1307
| Internal Diameter (mm) | Wall Thickness (mm) | Bending Radius | Working Pressure 20°C (bar) | Vacuum | Theoretical Weight (kg / m) | Length max. (m) |
|---|---|---|---|---|---|---|
| 19 | 6.0 | 125 | 16 | -0.90 | 0.62 | 40 |
| 25 | 6.0 | 150 | 16 | -0.90 | 0.87 | 40 |
| 32 | 6.0 | 175 | 16 | -0.90 | 1.00 | 40 |
| 38 | 6.5 | 225 | 16 | -0.90 | 1.40 | 40 |
| 50 | 8.0 | 275 | 16 | -0.90 | 2.00 | 40 |
| 51 | 8.0 | 275 | 16 | -0.90 | 2.05 | 40 |
| 63.5 | 8.0 | 300 | 16 | -0.90 | 2.80 | 40 |
| 75 | 8.0 | 350 | 16 | -0.90 | 3.40 | 40 |
| 76 | 8.0 | 350 | 16 | -0.90 | 3.45 | 40 |
| 100 | 9.0 | 450 | 16 | -0.90 | 5.00 | 40 |
| 102 | 9.0 | 450 | 16 | -0.90 | 5.10 | 40 |
→ Other sizes and different versions are available on request. Pictures might be different to the original
[tabs style=”button” position=”top-left”] [tab_title]Standard Connections[/tab_title] [tab_content]
Our Rubber hoses are manufactured according to the customers’ request.
Especially the connections play an important role.
Further information for the different types of connections you can get here
