Type SD

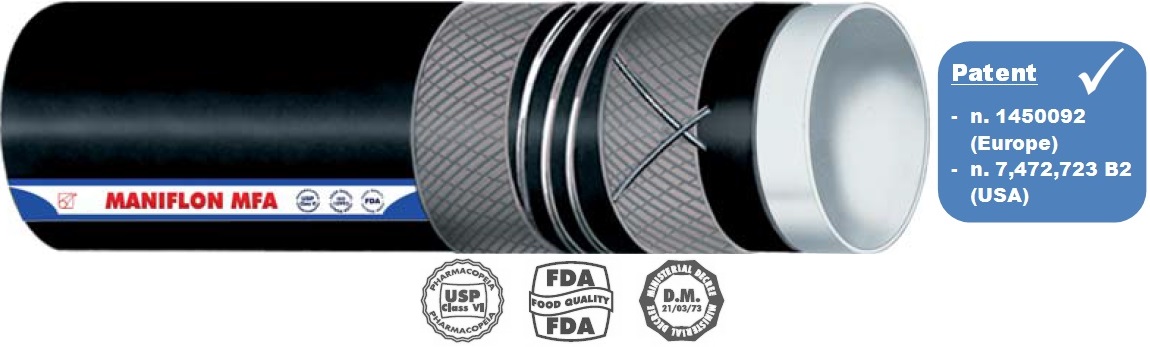

IBK – Chemical Hose Maniflon MFA
[tabs style=”button” position=”top-left”] [tab_title]Description[/tab_title] [tab_content]
Description
- Suction and delivery hose for conveying solvents and chemicals with high concentration
- The fluorinated inner liner ensures an excellent impermeability and utmost resistance to oxidation, to extreme temperatures and to mechanical stress, thus avoiding cracks
- Hose in accordance with EC 1935/2004 and 2023/2006/EC (GMP) and EC 1907/2006 (REACH)
- Meets the standards EN 12115:2011
Tube
- MFA (Perfluoralkoxy Polymer), fully fluorinated, white, patented, mirror-smooth, no contamination of taste and smell
- Compliance: UPS Class VI, FDA standards and D.M 21/03/73
Reinforcement
- Plies of high strength synthetic textile
- Embedded steel helix wire
- Built-in copper wires
Cover
- EPDM, black, smooth, resistant to abrasion, ozone, weather and high temperatures, cloth finish
- According EN 12115:2011, antistatic (R < 10^6 Ω)
Temperature resistance media
- From – 40°C up to + 150°C
- Resistance to steam up to + 130°C for max. 30 minutes
Electrical Properties
- Symbol: Ω / T → without copper wires: R < 10^6 ΩM / T → with copper wires: R < 10^2 Ω
Safety Factor
- > 4-times working pressure up to ID 75 mm
- > 3-times working pressure above ID 75 mm
[tabs style=”button” position=”top-left”] [tab_title]Technical Data[/tab_title] [tab_content]
Size Tolerance
Internal Diameter: EN 12115 / Wall Thickness: EN 12115 / Length: ISO 1307
| Internal Diameter (mm) | Wall Thickness (mm) | Bending Radius | Working Pressure 20°C (bar) | Vacuum | Theoretical Weight (kg / m) | Length max. (m) |
|---|---|---|---|---|---|---|
| 13 | 6.0 | 90 | 16 | -0.90 | 0.55 | 20 |
| 19 | 6.5 | 125 | 16 | -0.90 | 0.75 | 20 |
| 25 | 6.5 | 150 | 16 | -0.90 | 0.95 | 20 |
| 32 | 6.5 | 175 | 16 | -0.90 | 1.15 | 20 |
| 38 | 6.5 | 225 | 16 | -0.90 | 1.50 | 20 |
| 51 | 7.5 | 275 | 16 | -0.90 | 2.20 | 20 |
| 63.5 | 8.0 | 300 | 16 | -0.90 | 3.00 | 20 |
| 76 | 8.5 | 350 | 16 | -0.90 | 3.70 | 20 |
| 100 | 9.0 | 500 | 16 | -0.90 | 5.00 | 20 |
→ Other sizes and different versions are available on request. Pictures might be different to the original
[tabs style=”button” position=”top-left”] [tab_title]Standard Connections[/tab_title] [tab_content]
Our Rubber hoses are manufactured according to the customers’ request.
Especially the connections play an important role.
Further information for the different types of connections you can get here
